2003 CITATION CJ1 | SN 525-0525

HIGHLIGHTS

WAAS/LPV Equipped
Tamarack Winglets
Engines enrolled on Williams TAP Blue

Airframe

2,400 Hours Total Time
1,034 Total Landings

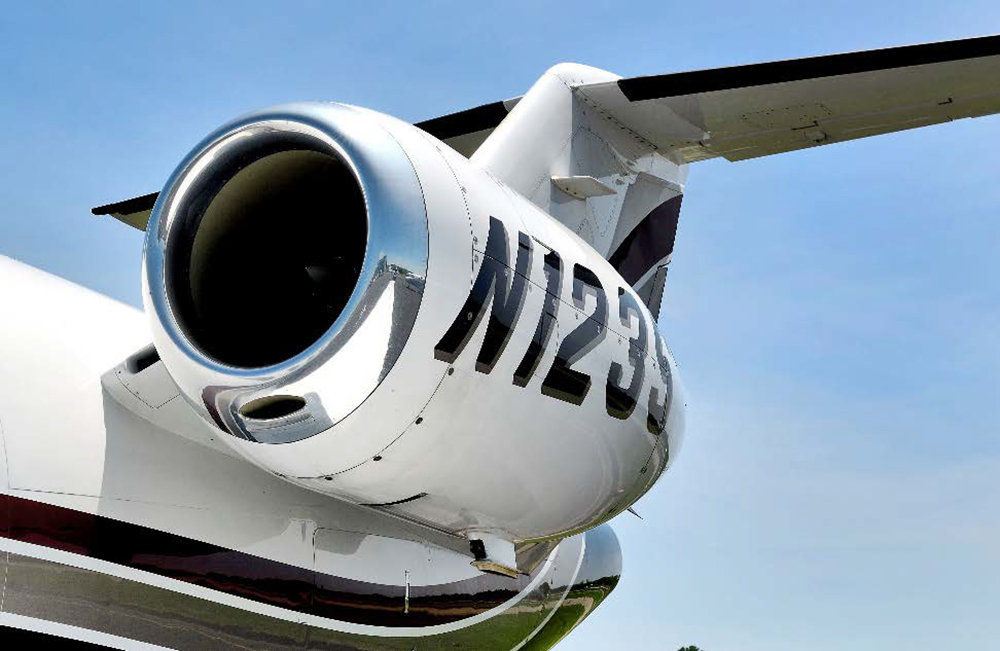

Engines

Enrolled on Williams TAP Blue
Williams FJ44-1A

Engine #1
SN: 2069
2,400 Hours Total Time
1,044 Total Cycles
Engine #2
SN: 2070
2,400 Hours Total Time
1,049 Total Cycles

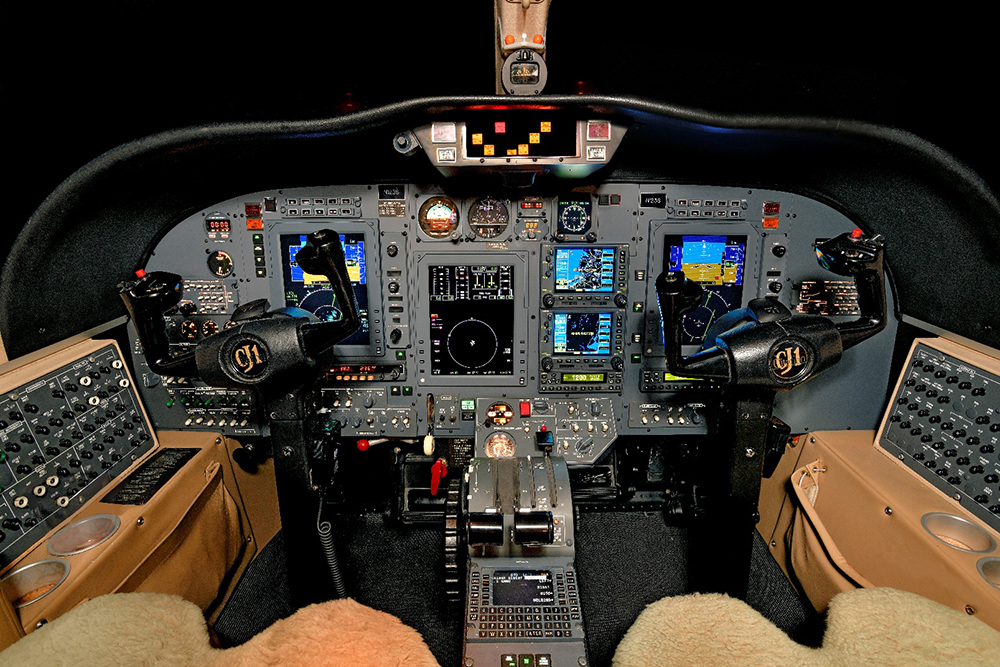

Avionics

Collins Pro Line 21 System
AIR DATA COMPUTER: Dual Collins ADC-3000 Air Data Computers
ALTITUDE HEADING REFERENCE SYSTEM: Dual Collins AHC-3000 AHRS
AUTOMATIC DIRECTIONAL FINDER: Bendix King KR-87 ADF Receiver
AUTOPILOT: Collins Pro Line 21 Integrated Avionics System
BROADCAST WEATHER: XM WX Satellite Weather
COCKPIT VOICE RECORDER: Provisions for CVR
COMMUNICATIONS: Dual Garmin GNS 530AW GPS Nav/Comm Units
DATA LOADER: Universal DTU 100 Data Loaded (Zip Drive)
DISPLAYS: (3) Collins AFD-3010 Adaptive Flight Displays
EMERGENCY LOCATOR TRANSMITTER: Artex 406 MHz ELT
ENHANCED GROUND PROXIMITY WARNING SYSTEM: Honeywell Mark VIII EGPWS Computer FLIGHT MANAGEMENT SYSTEMS: Single Universal UNS-1L
GLOBAL POSITIONING SYSTEMS: Dual Garmin GNS 530W GPS Nav/Comm Units
RADIO ALTIMETER: Single Collins ALT-4000 Radar Altimeter
TRAFFIC COLLISION AVOIDANCE SYSTEM: L3 SkyWatch TCAS I
TRANSPONDER: Dual Garmin GTX330DES Transponders with ADS-B Out
VHF NAVIGATION: Dual Garmin GNS 530W GPS Nav/Comm Units
WEATHER RADAR: Collins RTA-800 Weather Radar System

ADDITIONAL EQUIPMENT

EROS Crew Oxygen Masks
Marathon 44-amp hour Nickle-Cadmium Battery Davtron Digital Clock
Sheepskin Pilot Seats
110V AC Outlet in the Cockpit
Seat Back Pockets
Left Hand Belted Flushing Toilet
Electric Coffee Pot

CAPABILITIES

RVSM
8.33 Spacing
FM Immunity
WAAS / LPV
XM Weather
Third LCD Display
TCAS I

Interior

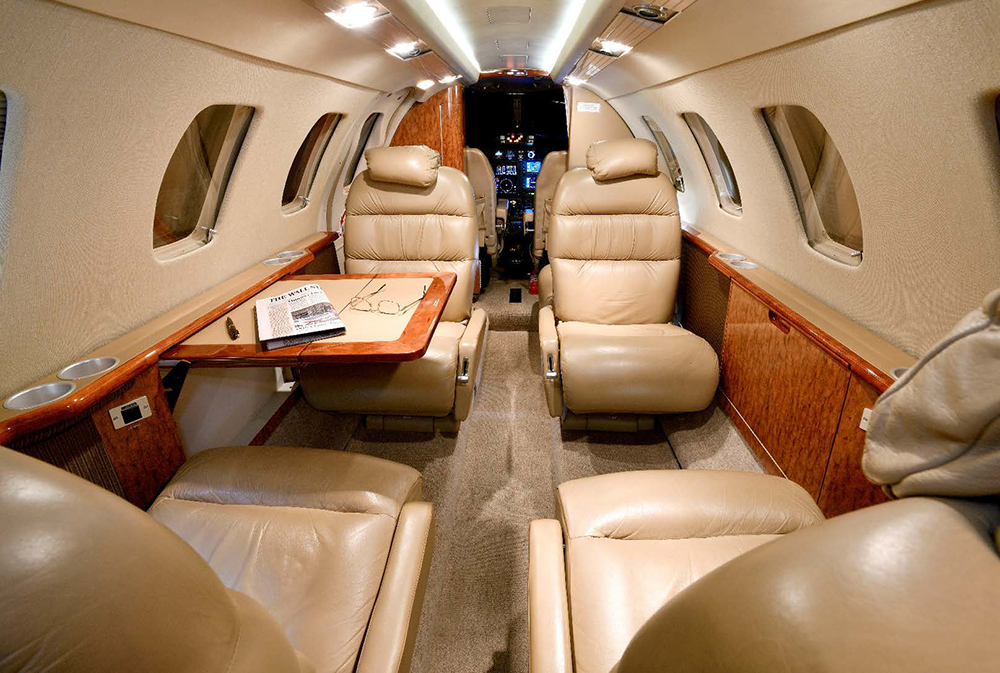

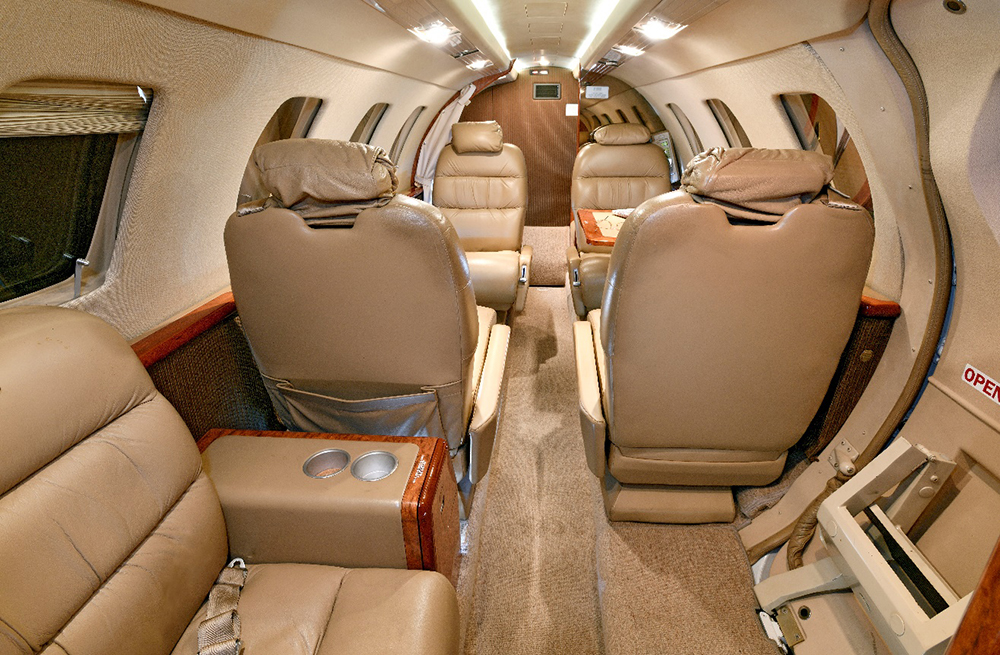

Original Standard CJ1 Seating Configuration with a Four-Place Forward Club equipped with Two Executive Tables.

Side-Facing Seat located across from the Main Entrance Door

Refreshment Center behind the Pilot Seat features an Electric Coffee Pot and Two Ice Drawers for Cold Storage

Side Ledges and Fold-Out Tables in the Main Cabin Area consist of Gray Leather and Gloss Wood Veneer

Dado Panels are Striped Upholstery with Gloss Wood Veneer, and Side Walls are covered with Mesh Gray Fabric

Seats are covered with Gray Leather and feature Stowable Arm Rests.

Gray Leather-Covered PSUs are equipped with Reading Lights and Gasper Vents

Upwash Lighting illuminates the Headliner, which is equipped with drop-down Oxygen Masks

110VAC/60Hz Electrical Outlets are installed in the Dado Panels adjacent to the Left and Right Forward-Facing Seats.

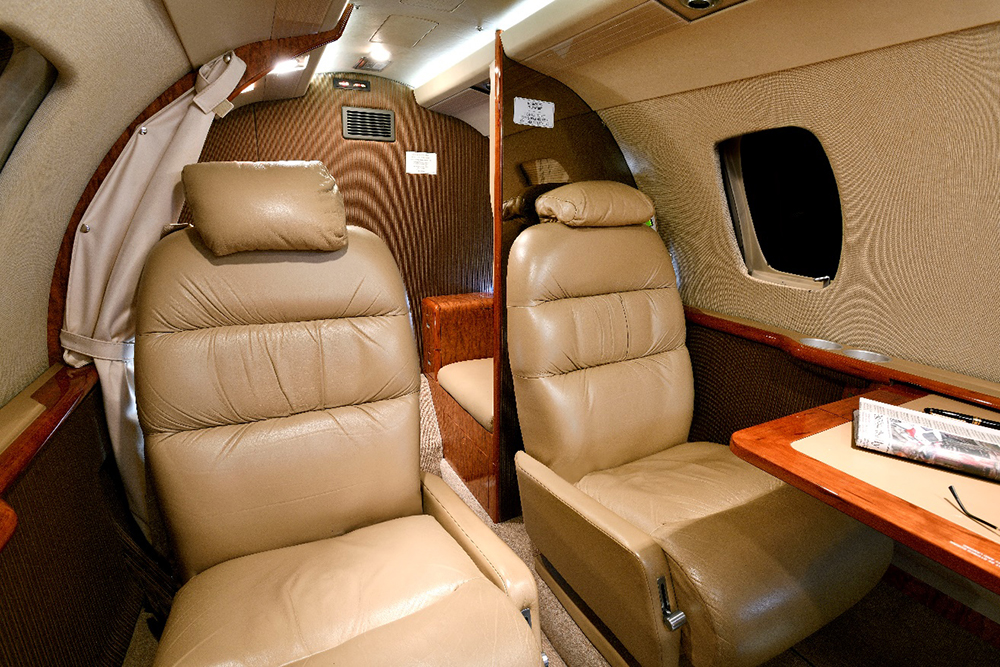

The Aft Cabin Area is equipped with a Left-Side Belted Lav Seat and Chemical Toilet. A fold-down Coat Hanger Bar allows for Storage of Jackets and Suits.

A Roll-Up Privacy Curtain attaches to the Left-Mounted Aft Cabin Bulkhead

The Flight Deck features Sheepskin Pilot Seats with a 110VAC Electrical Outlet on the Co-Pilot Side Ledge

CABIN ENTERTAINMENT & COMMUNICATIONS
Aircell AT.02 Cellular Airborne Phone System
(2) Phone Handsets, (1) in the cockpit and (1) in the cabin
(2) 110V Cabin Outlets

Exterior

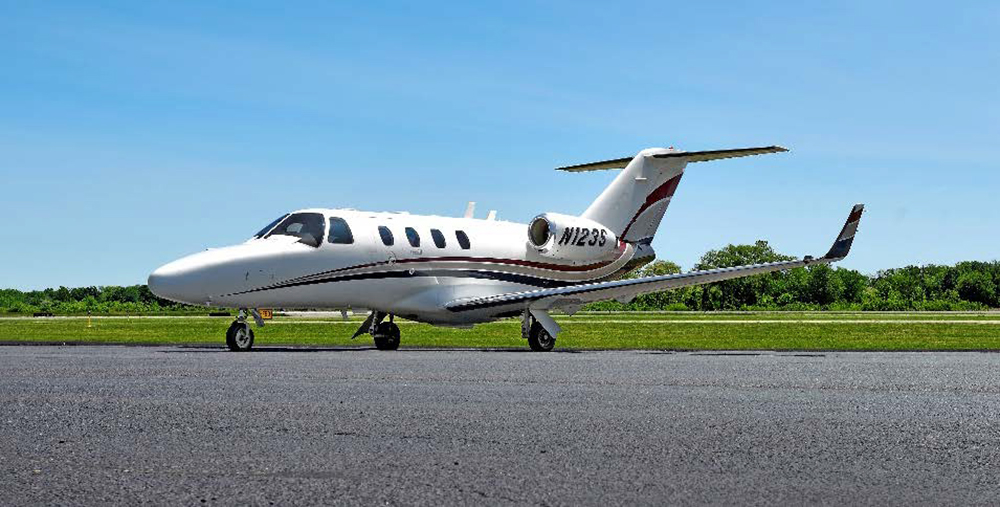

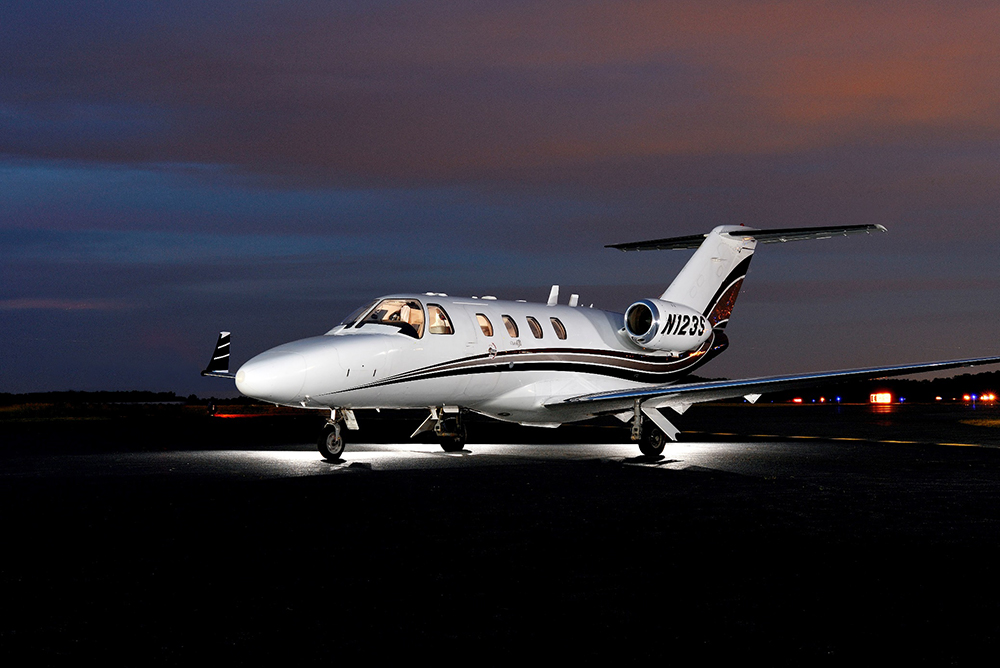

Original Matterhorn White Base with Maroon, Gray, and Navy-Blue Accents.

WEIGHTS

MAX RAMP WEIGHT: 10,700 lbs
MAX LANDING WEIGHT: 9,800 lbs
EMPTY WEIGHT: 6,791 lbs
MAX TAKE-OFF WEIGHT: 10,600 lbs
MAX ZERO FUEL: 8,400 lbs

MAINTENANCE STATUS

Enrolled on CAMP / CESCOM


Aircraft specifications are always subject to verification by purchaser.
