1999 CHALLENGER 604 | 5392 | N325JJ

ACQUIRED & SOLD by Meisner Aircraft.

Airframe

Pro Parts Plus (Gear option included)
TOTAL TIME: 7775 Hours
TOTAL LANDINGS: 4021 Landings

Engines

General Electric Engine Model: CF34-3B
Engines on GE On-Point

Engine #1
SN: 872407
Time Since New: 7626 Hours
Engine Cycles: 3953 Cycles
HSI/Overhaul: On Condition
Engine #2
SN: 872408
Time Since New: 7626 Hours
Engine Cycles: 3953 Cycles
HSI/Overhaul: On Condition

apu

Enrolled on Honeywell MSP
Honeywell GTCP 36-150
Serial Number: P-586C
Time Since New: 7010 Hours

Avionics

Six EFIS display tubes w/ EICAS
Dual Collins FCC-4006 Digital Autopilot
Dual Collins ADC-850 (E) Digital Air Data Computers
Dual Collins GPS-4000S w/ WAAS (S/B 604-34-057)
Triple Collins FMS-6000 FMS w/ WAAS/LPV
Dual Collins DCU-4000 series Data Concentrator Units
Triple Litton-101 Inertial Reference Units
Dual Channel Collins Integrated Avionics Processing (IAPS)
Collins MDC-4000 Maintenance Diagnostic Computer
Dual Collins RTU-4000 Radio Tuning Units
Collins Weather Radar (RTA 850)
Dual Collins ALT 55A Radio Altimeter
Dual Collins HF-9000 High Frequency Communications System
Coltech CSD-714 Selcal Decoder System
Triple Collins VHF-422D Comm Transceivers (8.33 Spacing)
Dual Collins VIR-432 Nav Receivers (FM Immunity)
Dual Collins DME-442 Distance Measuring Equipment
Dual Collins ADF-462 Automatic Direction Finders
Dual Collins TDR-94D Transponders w/ Enhanced Mode S
Collins TTR-920 TCAS II w/ Change 7.1
Honeywell Mark V EGPWS
Fairchild F-1000 Flight Data Recorder
Fairchild A100S Cockpit Voice Recorder
ADS-B
Precision Plus

ADDITIONAL EQUIPMENT

NAT, MNPS, RNP 5 & RNP 10 Capable
TAS Max Viz EVS-1000 System
RVSM Capable
ARTEX ELT 110-406
Collins DBU-5000
Collins WX-1000E Lightning Detection System
True North Telephone System
Collins SAT 2100 High Speed Data w/ Swift broadband
Honeywell AFIS
Airshow Genesys System
Sony 10 disc CD Changer
Phillips DVD Player
14” Aft Bulkhead Mirror
ATG-4000 GoGo WiFi

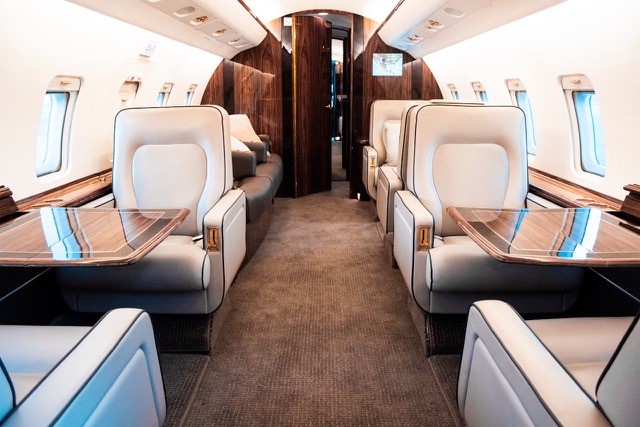

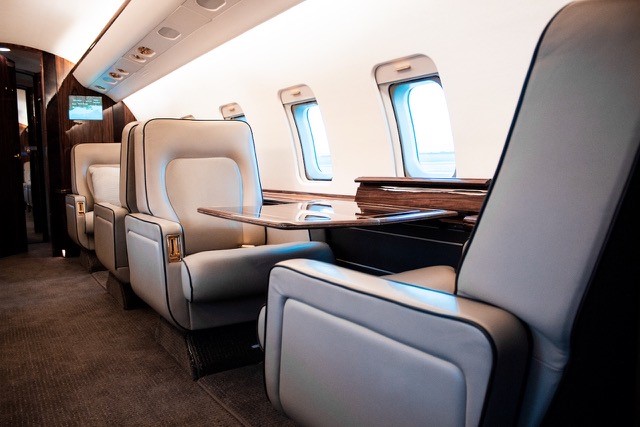

Interior

Cabin Seating & Carpet Refurbishment in September 2018 by Duncan Aviation (Nebraska)
9-Passenger Configuration
Crew Jump Seat (10th seat option)
Forward Cabin: Double Club Seating w/ two fold out tables

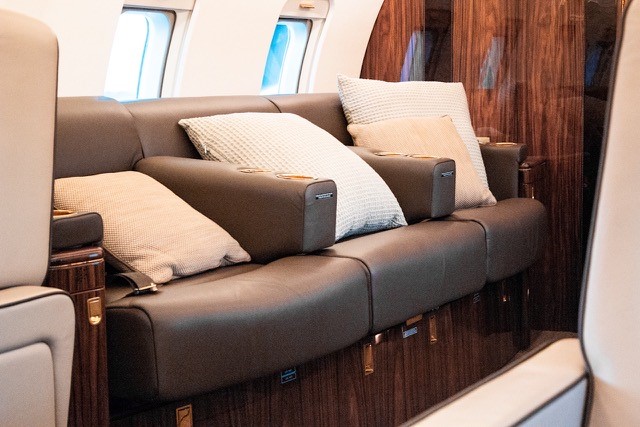

Aft Cabin: Two Executive Seats w/ fold out table, opposite a three-place divan
Forward Galley w/ High Temp Oven
Aft Private Lavatory
Fireblocked

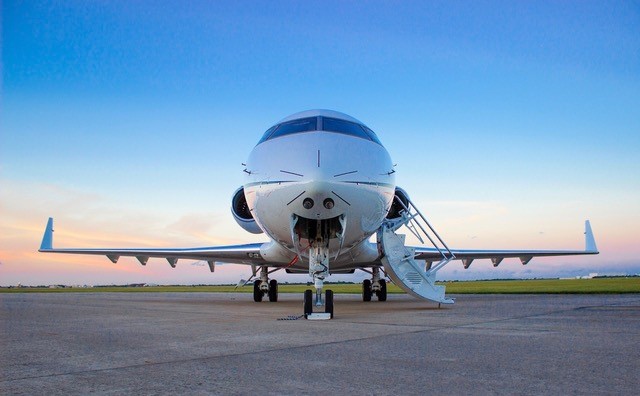

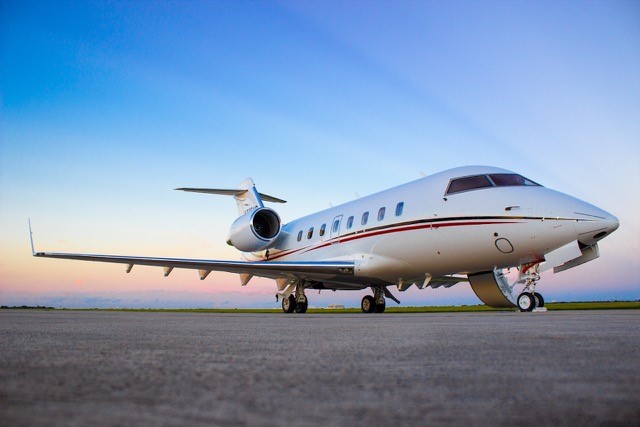

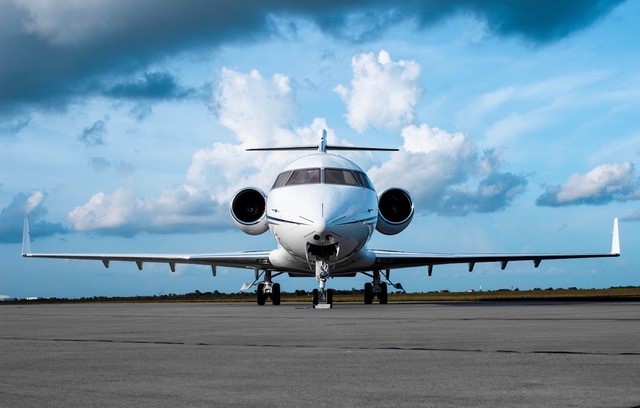

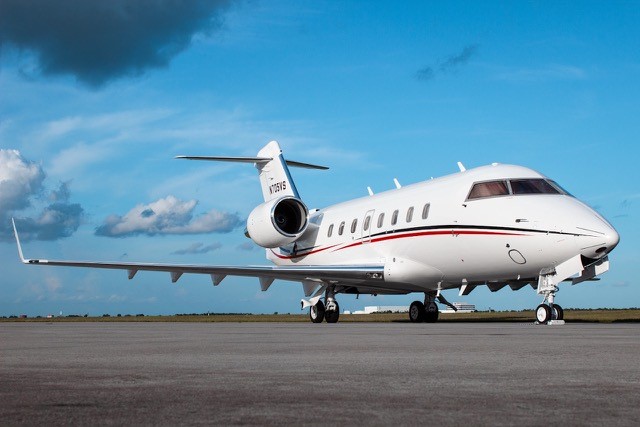

Exterior

Painted in September 2018 by Duncan Aviation (Nebraska)
The fuselage is Snow White w/ Red & Black Accent Stripes

MAINTENANCE & INSPECTIONS

CAMP Maintenance Tracking Program
Currently on a 135 certificate with Talon Air out of Farmingdale, NY


Aircraft specifications are always subject to verification by purchaser.
