1989 Challenger 601-3A N440KM

Airframe Time

12,070 hrs
8,070 Landings

Engines

(2) GE CF34-3A Engines (This particular s/n airplane is eligible for OnCondition status by GE)

Engine #1
9,341 hrs TT
5,638 Cycles
Engine #2
10,569 hrs TT
7,780 Cycles

APU

Garrett GTCP 36-100E
Total Time: 4,367 hrs.

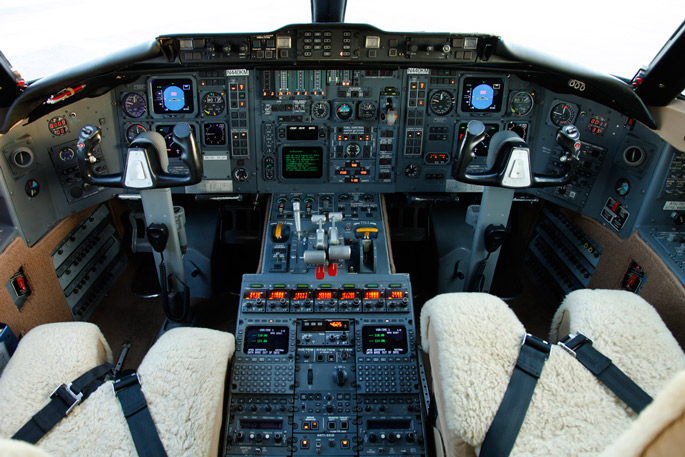

AVIONICS

Honeywell SPZ-8000 Digital Autopilot/IFCS

Honeywell EDZ-803 5-Tube EFIS

Dual Collins Pro Line II Avionics

Honeywell Primus 870 Color Weather Radar

Triple Collins VHF-22D Receivers w/8.33 spacing

Dual Collins VIR-32 Nav’s w/FM Immunity

Dual Collins DME-42’s

Dual Collins ADF-462’s

Dual Collins TDR-94D’s w/ Enhanced Surveilllance

Honeywell ALT-55 Radar Altimeter

Artex 406 ELT

FDR

Safe Flight AOA Instructor

Arcell ST-3100 Iridium (2 Handsets)

Collins CTL-22C Control Heads

Dual Honeywell Digital ADC’s

Dual Collins HF-9000’s w/SELCAL

Honeywell SAT-AFIS

Collins TCAS II w/Change 7

Honeywell Mark V EGPWS w/Windshear

Dual Honeywell NZ-2000 FMS w/6.0 Software and Dual 12 Channel GPS

Triple Honeywell Lasereft IRS

Honeywell Lasertrak NDU

Fairchild A100A CVR

Honeywell DL-950 Dataloader

Dual Baker M-1045 Audio Panels

INTERIOR

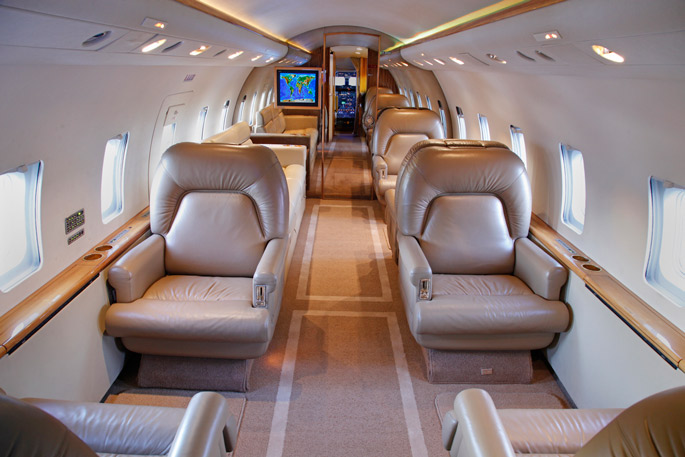

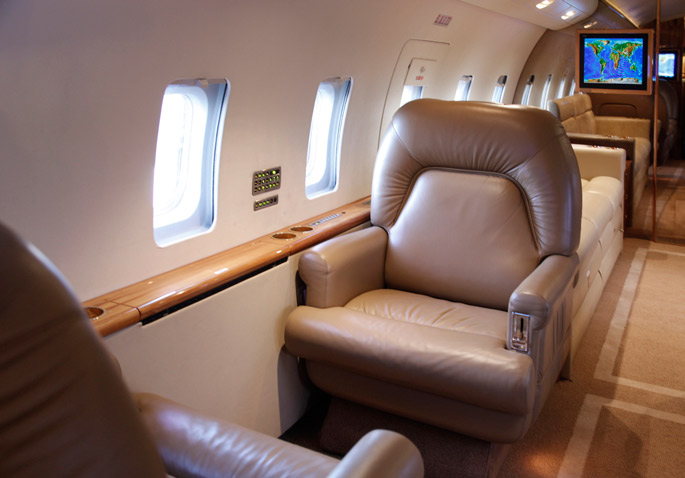

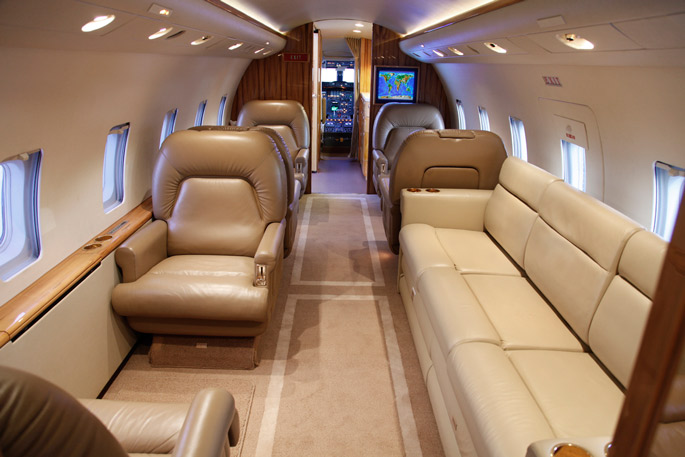

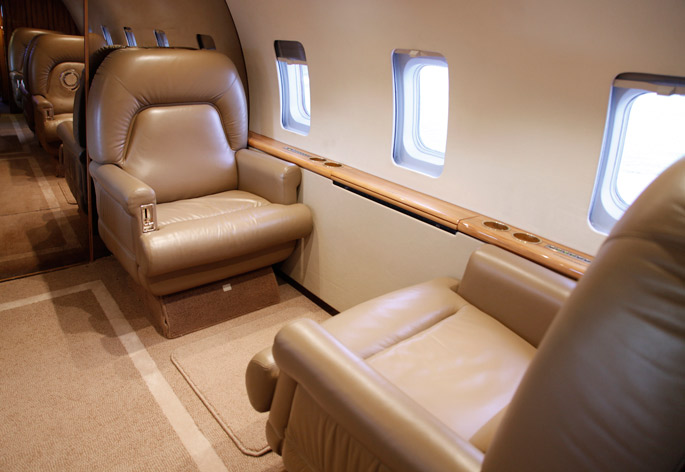

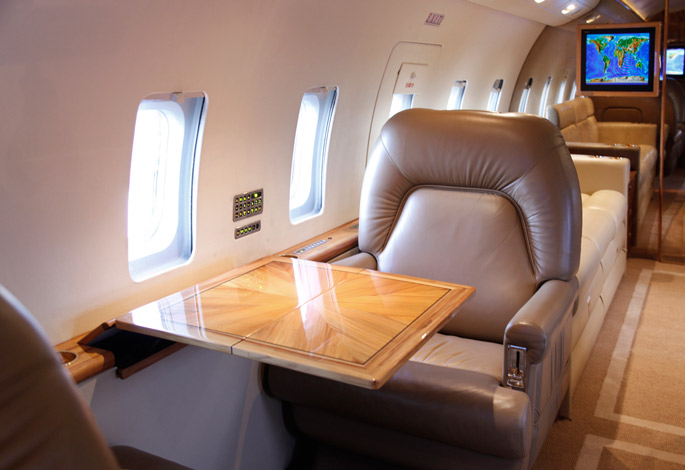

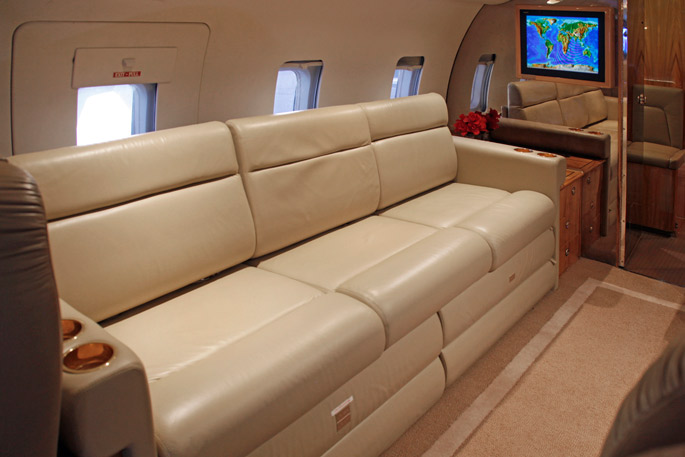

Newly Refurbished October 2016 with new carpet, lower side-walls, crew seats recovered and all leather professionally cleaned.Seating for three crew and up to ten passengers in an ultra-quiet cabin environment. The cabin is arranged with a forward four-place club seating area and aft four-place divan opposite two club chairs. Fireblocked. Pecan Brown leather chair upholstery is complemented by Light Café Crème divan upholstery, matching neutral headliner, patterned pecan fabric lower sidewalls, high-gloss wood cabinetry, corian countertops, desert sand wool carpeting, and Gold-plated hardware.

The cabin entertainment system features forward and aft 18” baker LCD flatscreen video monitors, airshow 400 passenger in-flight information system, baker DVD player, and baker 10-disc CD player. The baker
cabin entertainment and switching system gives passengers in the forward club seating area full control of the audio/visual/lighting/air systems throughout the cabin. The aircell ST-3100 Iridium telephone system
provides passengers with in-flight worldwide calling ability from anywhere in the world at any altitude.

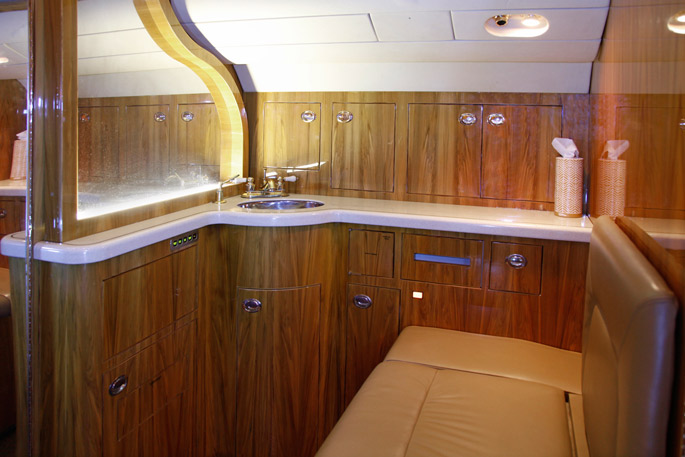

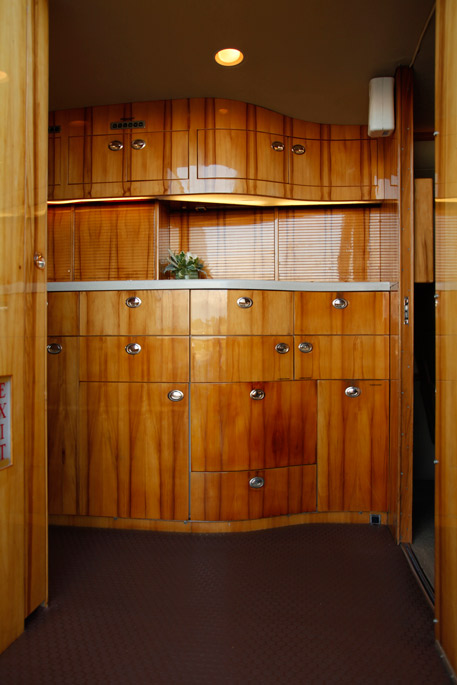

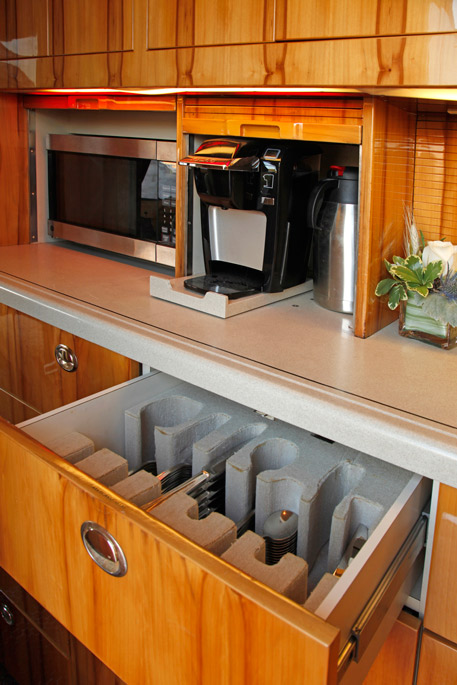

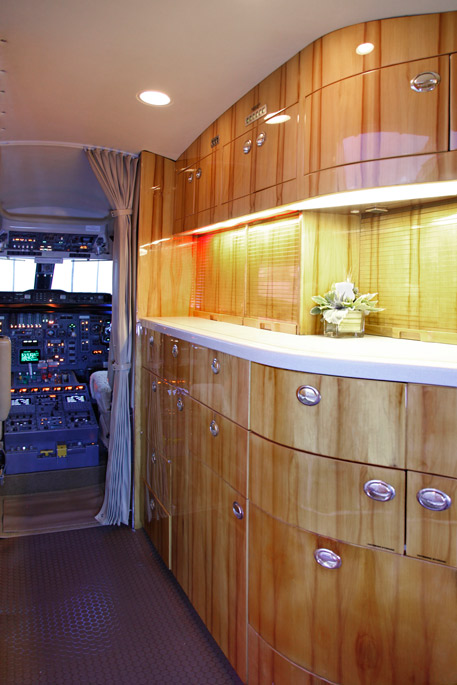

The full-service forward “S”-style galley Features a TIA oven, microwave, and Braun coffee maker. The galley has ample space for catering of meals, Snacks, and beverages, featuring multiple sliding drawers, custom shelving, multiple ice drawers, custom wine storage area and your personal china, crystal, and flatware.

The private aft lavatory is convenient to passengers, and is complete with mirrored vanity, storage drawers, sink, and hot/cold pressure water system. The large closet, and spacious in-flight accessible aft baggage compartment, enables passengers to use this large area for changing clothes en-route.

Other cabin amenities include fiber optic cabin lighting, large stowable writing desks / dining tables with sunburst inlay design, and a 120-volt electrical outlet system for laptops and cell phone chargers.

EXTERIOR

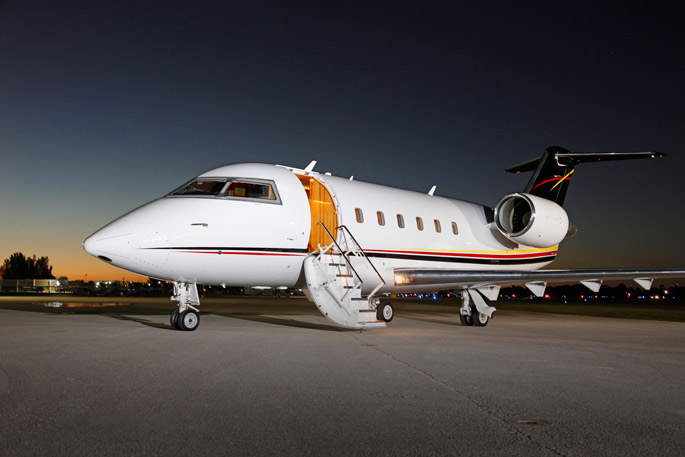

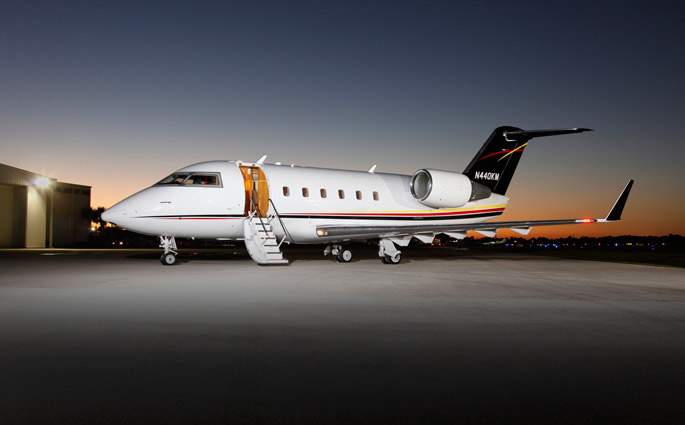

New 2011. Overall Matterhorn White with Black, Yellow, and Red accent stripes.

MAINTENANCE

  • Fresh 60 Month was Complied With (not due)
  • 25 Month Check – Due November 2016
  • 36 Month Check – Due August 2018
  • 48 Month Check – Due February 2017
  • 120 Month Check – Due January 2020
  • Landing Gear – Due January 2020

Aircraft specifications are always subject to verification by purchaser.
